The global leader Of ESL solutions

XUTEC ESL Solution

Next-generation pricing technology revolutionizing retail operations

Powered by our cutting-edge WDOP platform and intelligent ESL hardware, this end-to-end system eliminates the limitations of traditional paper tags.

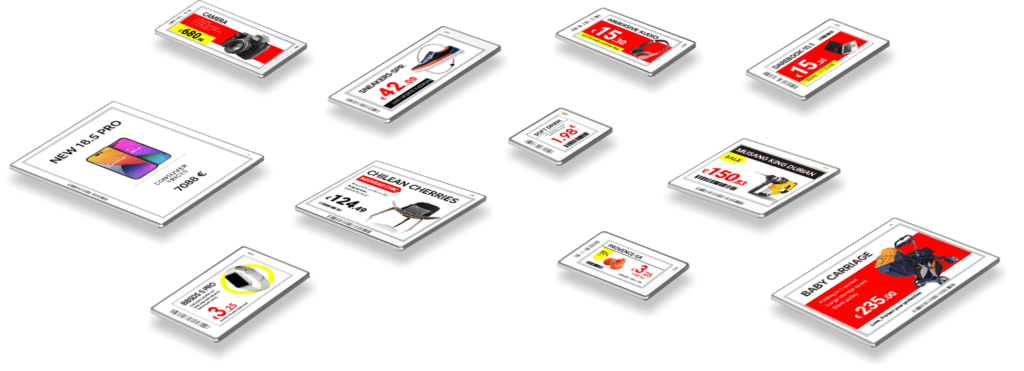

imgi_17_l-sec-2
imgi_18_l-sec-1
imgi_19_l-sec-3

2.4G proprietary communication protocol

Hacker-Resistant – Military-grade encryption with dynamic key rotation

Interference-Immune – Intelligent channel-hopping technology

Ultra-Low Power – Industry-leading 10-year battery life

Lightning-Fast – Sub-100ms store-wide synchronization

End-to-End Data Orchestration Platform

● Universal Compatibility – Native integration with all major ERP & third-party systems

● Flexible Connectivity – Multiple integration options (API/Middleware) for painless deployment

● Cross-Domain Synchronization – Real-time data flow digitalization between retail front store and warehouse etc.

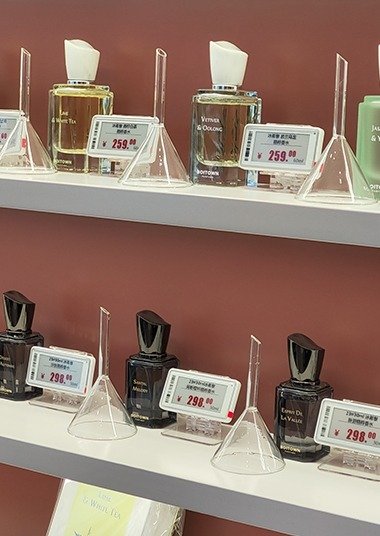

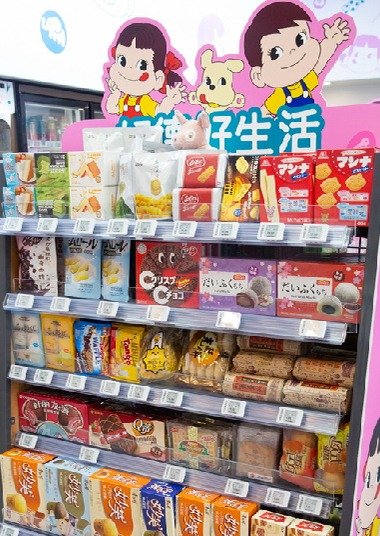

Convenient Store

Storage

Super Market

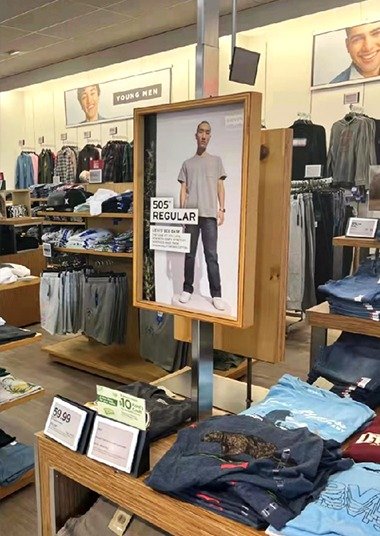

Clothing Store

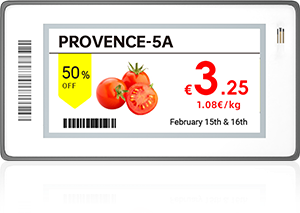

imgi_24_213
imgi_26_266-c
imgi_25_266
imgi_27_290
imgi_28_350
imgi_29_350-c
imgi_32_437
imgi_33_579

Creative multi-color display

● Colors: black/white/red/yellow

● Easy and fast switch to promotional theme and ESL status

● Precision marketing information display to energize consumption

Intelligent integration for smart retail digital transformation

Together with NFC, it supports for flexible placement and repositioning on shelves to meet changing store layouts and promotional needs, enhancing stock management accuracy, and providing better shopping experience.

*Note: NFC functionality is an optional feature upon request

High-value solution

We are committed to providing each customer with high-quality products and services, perfectly addressing customers’ relevant needs.

LANSON

With end-to-end high value customization services, in-depth needs assessment and technological innovation by our most experienced team, WINTEC offers the bespoke solution upon various customers’ needs and guaranteed implementation, which empowers the most efficient business development.

LS0154

FeatureDetails
Product Size46.69 x 37.57 x 12.5 mm
Screen Size27 x 27 mm
Resolution200 x 200 pixel
Pixel Density188 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 1pc / 600mAh
Battery Lifespan6 Years (2 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

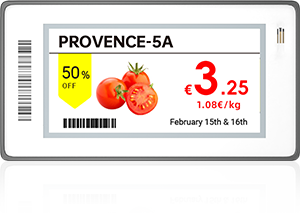

LS0213

FeatureDetails
Product Size68.57 x 36.48 x 12.5 mm
Screen Size48.5 x 23.7 mm
Resolution250 x 122 pixel
Pixel Density130 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

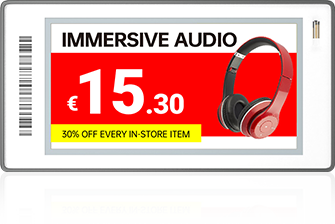

LS0266

FeatureDetails
Product Size81.37 x 41.97 x 12.5 mm
Screen Size60 x 30.7 mm
Resolution296 x 152 pixel
Pixel Density125 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

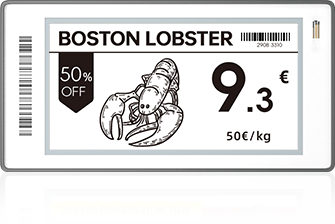

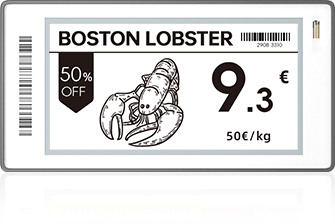

LS0266-C

FeatureDetails
Product Size81.37 x 41.97 x 12.5 mm
Screen Size60 x 30.7 mm
Resolution296 x 152 pixel
Pixel Density125 DPI
Display ColorBlack, white
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature-25 ~ 10℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

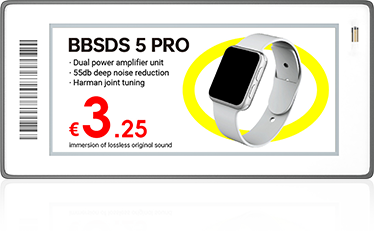

LS0290

FeatureDetails
Product Size88.37 x 42.47 x 12.5 mm
Screen Size66.9 x 29 mm
Resolution296 x 128 pixel
Pixel Density112 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

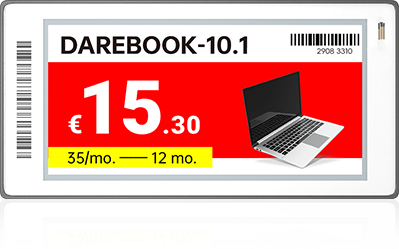

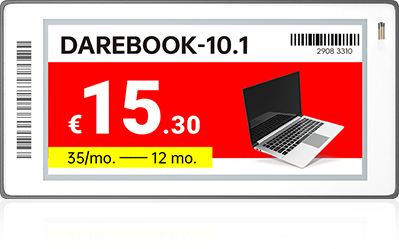

LS0350

FeatureDetails
Product Size101.12 x 50.6 x 12.5 mm
Screen Size79.68 x 38.18 mm
Resolution384 x 184 pixel
Pixel Density122 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

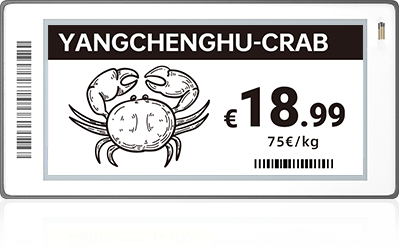

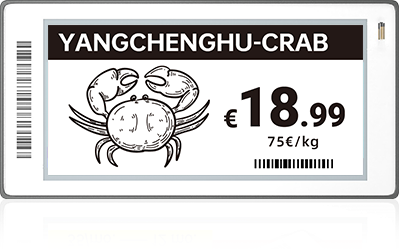

LS0350-C

FeatureDetails
Product Size101.12 x 50.6 x 12.5 mm
Screen Size79.68 x 38.18 mm
Resolution384 x 184 pixel
Pixel Density122 DPI
Display ColorBlack, white
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature-25 ~ 10℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

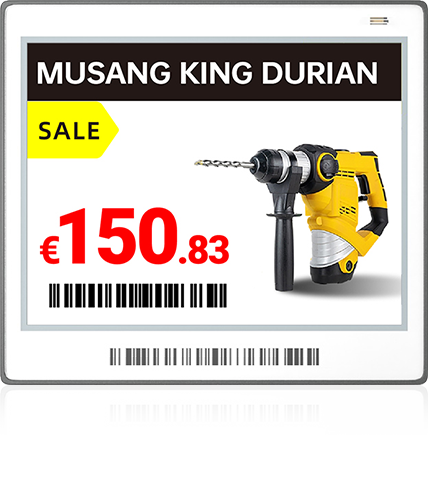

LS0420

FeatureDetails
Product Size96.56 x 86.56 x 13.1 mm
Screen Size84.8 x 63.6 mm
Resolution400 x 300 pixel
Pixel Density120 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 3pc / 1800mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

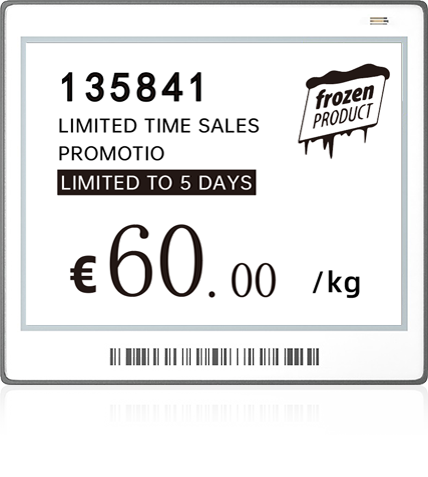

LS0420-W

FeatureDetails
Product Size96.56 x 86.56 x 13.1 mm
Screen Size84.8 x 63.6 mm
Resolution400 x 300 pixel
Pixel Density120 DPI
Display ColorBlack, white, red
BatteryCR2450 x 3pc / 1800mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

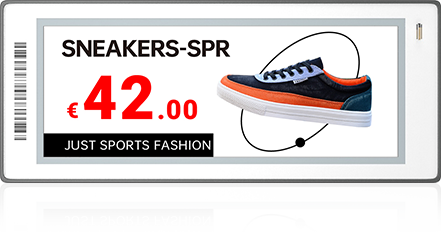

LS0437

FeatureDetails
Product Size129 x 53 x 13.1 mm
Screen Size104.16 x 38.19 mm
Resolution480 x 176 pixel
Pixel Density117 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

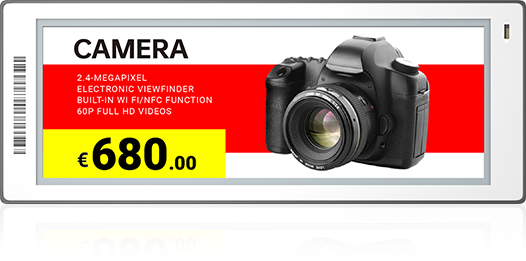

LS0579

FeatureDetails
Product Size165.06 x 64.06 x 14.65 mm
Screen Size139 x 47.74 mm
Resolution792 x 272 pixel
Pixel Density144 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 2pc / 1200mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

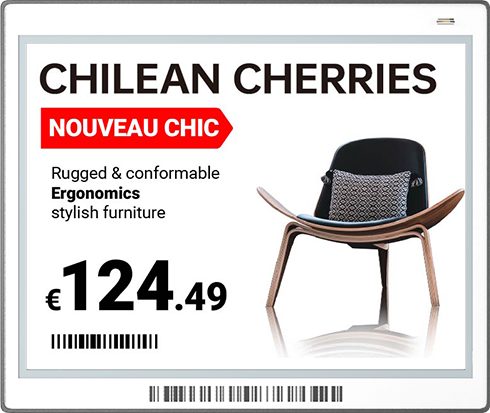

LS0583

FeatureDetails
Product Size132.44 x 111.26 x 14.8 mm
Screen Size118.78 x 88.22 mm
Resolution648 x 480 pixel
Pixel Density138 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 4pc / 2400mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

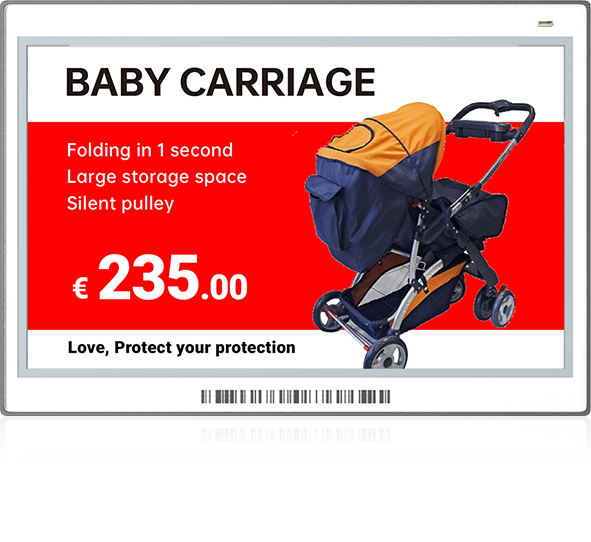

LS0750

FeatureDetails
Product Size178.63 x 125.42 x 16 mm
Screen Size163.2 x 97.9 mm
Resolution800 x 480 pixel
Pixel Density124 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 6pc / 3600mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

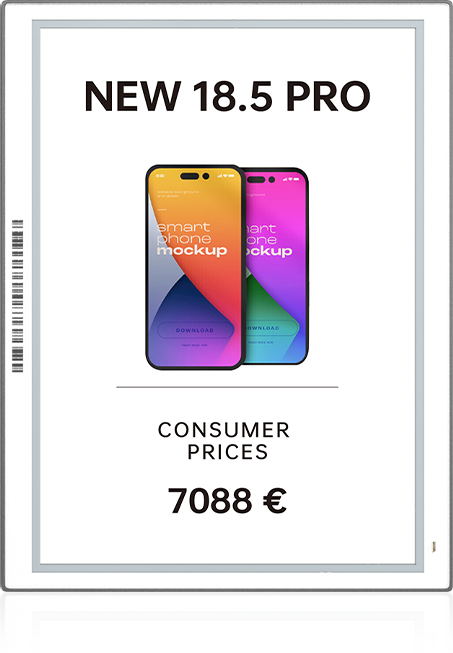

LS0970

FeatureDetails
Product Size221.8 x 169 x 16 mm
Screen Size201.6 x 141.12 mm
Resolution960 x 672 pixel
Pixel Density121 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 6pc / 3600mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request

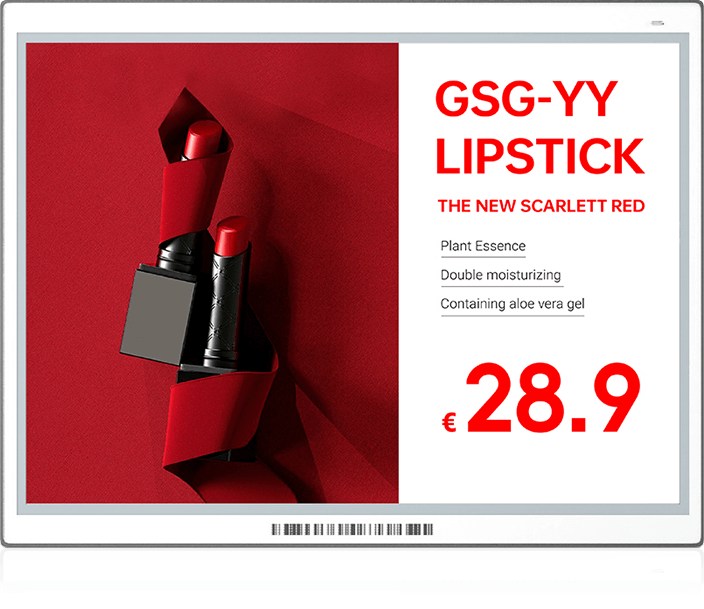

LS1330

FeatureDetails
Product Size296 x 230.5 x 16 mm
Screen Size275.52 x 195.16 mm
Resolution960 x 680 pixel
Pixel Density88 DPI
Display ColorBlack, white, red, yellow
BatteryCR2450 x 6pc / 3600mAh
Battery Lifespan10 years (4 Times/Day)
Operation Temperature0 ~ 40℃
NFCStandard
Operating Frequency2405 ~ 2480Hz

*Note: NFC functionality is an optional feature upon request
